Linear wipe
Last updated
Linear wipe is a Transition effect.
What it does

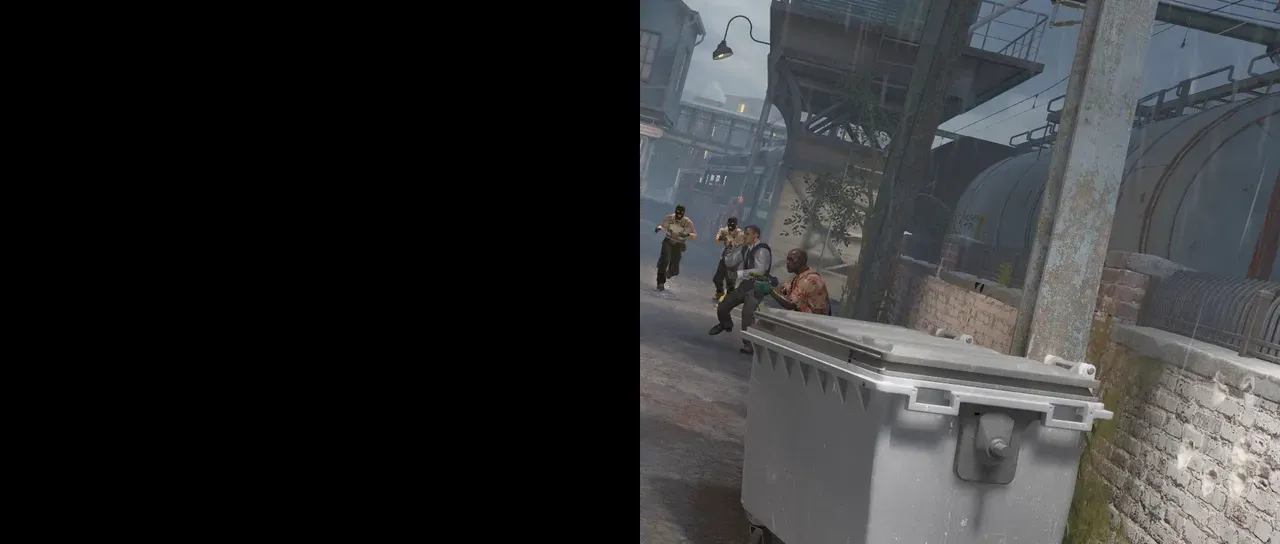

Section titled “What it does”Wipes the layer away along a straight line.
Parameters
Section titled “Parameters”| Parameter | Control | Range | Default | Unit |
|---|---|---|---|---|
| Wipe centre x | Slider | 0 to 3840; any value by typing | 960 | Pixels at composition size |
| Wipe centre y | Slider | 0 to 2160; any value by typing | 540 | Pixels at composition size |
| Completion | Slider | 0 to 100 | 50 | Per cent |
| Wipe angle | Dial | Any angle; snaps every 15° while a modifier is held | 90° | Degrees |
| Feather | Slider | 0 to 500; higher | 0 | Pixels at composition size |
| Mix | Slider | 0 to 100 | 100 | Per cent |
| Blend | Dropdown | Normal · Darken · Multiply · Colour burn · Linear burn · Darker colour · Add · Lighten · Screen · Colour dodge · Lighter colour · Overlay · Soft light · Hard light · Linear light · Vivid light · Pin light · Hard mix · Difference · Exclusion · Subtract · Divide · Hue · Saturation · Colour · Luminosity | Normal | - |
| Matte | Layer | Any layer in the composition | None | - |
| Invert | Checkbox | On or off | Off | - |
| Channel | Dropdown | Luminance · Alpha · Red · Green · Blue | Luminance | - |
In the Effect Controls panel:
- Matte scales Completion per pixel: the wipe is further along where the matte is bright, so a grey ramp is a gradient wipe and a black matte holds the frame back. Invert reads that matte inverted.
What each control does
Section titled “What each control does”- Wipe centre x and Wipe centre y set the line pivot centre.
- Completion is how far the edge has travelled as a percentage.
- Wipe angle sets the direction the edge runs.
- Feather softens the edge.
- Mix: how much of the result replaces the original.
- Matte and Invert drive the strength of the effect from another layer’s brightness; see Effects.
