Reference / Effects / Distortion
Updated
Spherize
Spherize is a Distortion effect.
What it does

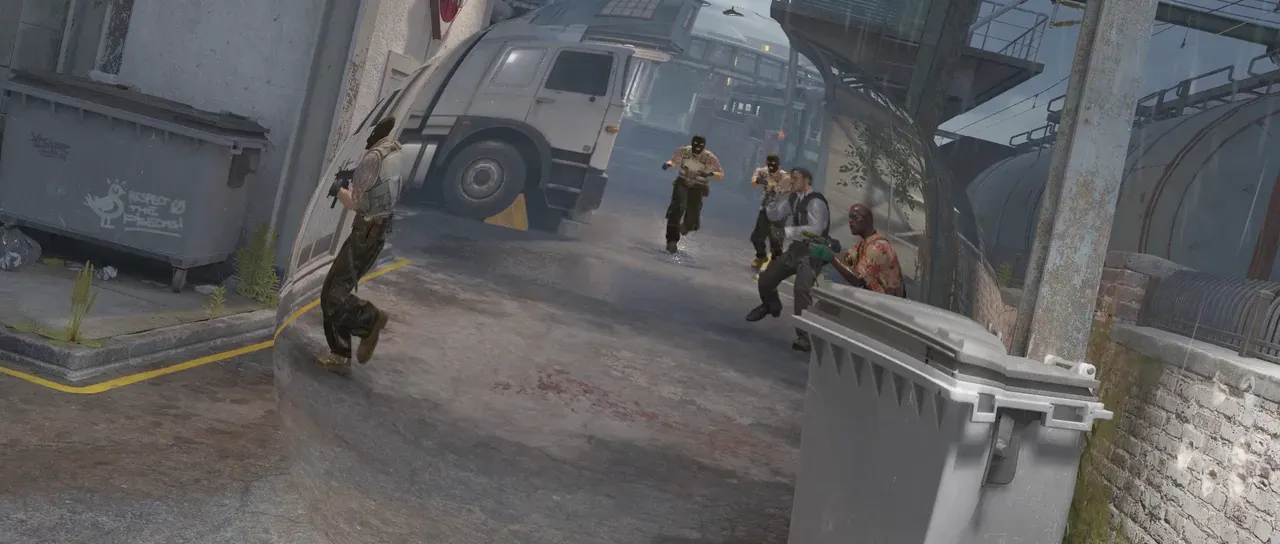

Section titled “What it does”Warps the layer as if a magnifying glass was warping the contents. Inverted this acts like a fisheye lens.
Parameters
Section titled “Parameters”| Parameter | Control | Range | Default | Unit |
|---|---|---|---|---|
| Radius | Slider | 0 to 2000; higher | 550 | Pixels at composition size |
| Bulge | Slider | -100 to 100 | 100 | Per cent |
| Centre X | Slider | 0 to 3840; any value by typing | 960 | Pixels at composition size |
| Centre Y | Slider | 0 to 2160; any value by typing | 540 | Pixels at composition size |
| Mix | Slider | 0 to 100 | 100 | Per cent |
| Blend | Dropdown | Normal · Darken · Multiply · Colour burn · Linear burn · Darker colour · Add · Lighten · Screen · Colour dodge · Lighter colour · Overlay · Soft light · Hard light · Linear light · Vivid light · Pin light · Hard mix · Difference · Exclusion · Subtract · Divide · Hue · Saturation · Colour · Luminosity | Normal | - |
| Matte | Layer | Any layer in the composition | None | - |
| Invert | Checkbox | On or off | Off | - |
| Channel | Dropdown | Luminance · Alpha · Red · Green · Blue | Luminance | - |
In the Effect Controls panel:
- Matte scales Bulge per pixel: white bulges the full amount, grey less, black not at all. Invert reads that matte inverted.
What each control does
Section titled “What each control does”- Radius: adjust the area to warp.
- Bulge: which direction the image distorts in.
- Centre X and Centre Y: the centre point of the warp area.
- Mix: how much of the result replaces the original.
- Matte and Invert drive the strength of the effect from another layer’s brightness; see Effects.
