Reference / Effects / Colour
Updated
Vignette
Vignette is a Colour effect.
What it does

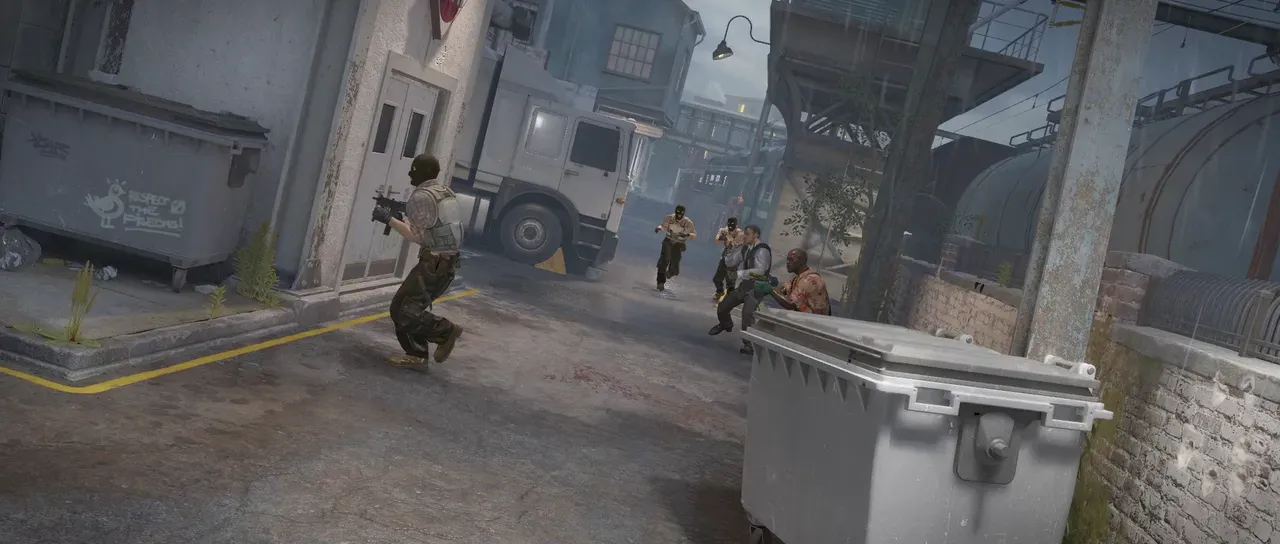

Section titled “What it does”Darkens the frame away from the centre.
Parameters
Section titled “Parameters”| Parameter | Control | Range | Default | Unit |
|---|---|---|---|---|
| Amount | Slider | 0 to 1 | 0.5 | - |
| Radius | Slider | 0 to 1 | 0.75 | - |
| Softness | Slider | 0 to 2; higher | 0.5 | - |
| Roundness | Slider | 0 to 1 | 1 | - |
| Ramp | Slider | 0.2 to 4; down to 0.05 and higher | 1 | - |
| Mix | Slider | 0 to 100 | 100 | Per cent |
| Blend | Dropdown | Normal · Darken · Multiply · Colour burn · Linear burn · Darker colour · Add · Lighten · Screen · Colour dodge · Lighter colour · Overlay · Soft light · Hard light · Linear light · Vivid light · Pin light · Hard mix · Difference · Exclusion · Subtract · Divide · Hue · Saturation · Colour · Luminosity | Normal | - |
| Matte | Layer | Any layer in the composition | None | - |
| Invert | Checkbox | On or off | Off | - |
| Channel | Dropdown | Luminance · Alpha · Red · Green · Blue | Luminance | - |
In the Effect Controls panel:
- Matte is an input to an effect, scaling the strength. Invert inverts the mattes for calculating strength.
What each control does
Section titled “What each control does”- Amount: how intense the vignette is.
- Radius: how far from the middle the darkening begins.
- Softness: the width of the fade between transparent and full black.
- Roundness: at zero it’s an ellipse that reaches every edge equally. One is a circle.
- Ramp: the shape of the falloff curve.
- Mix: how much of the result replaces the original.
- Matte and Invert drive the strength of the effect from another layer’s brightness; see Effects.
