Card wipe
Card wipe is a Transition effect.
What it does

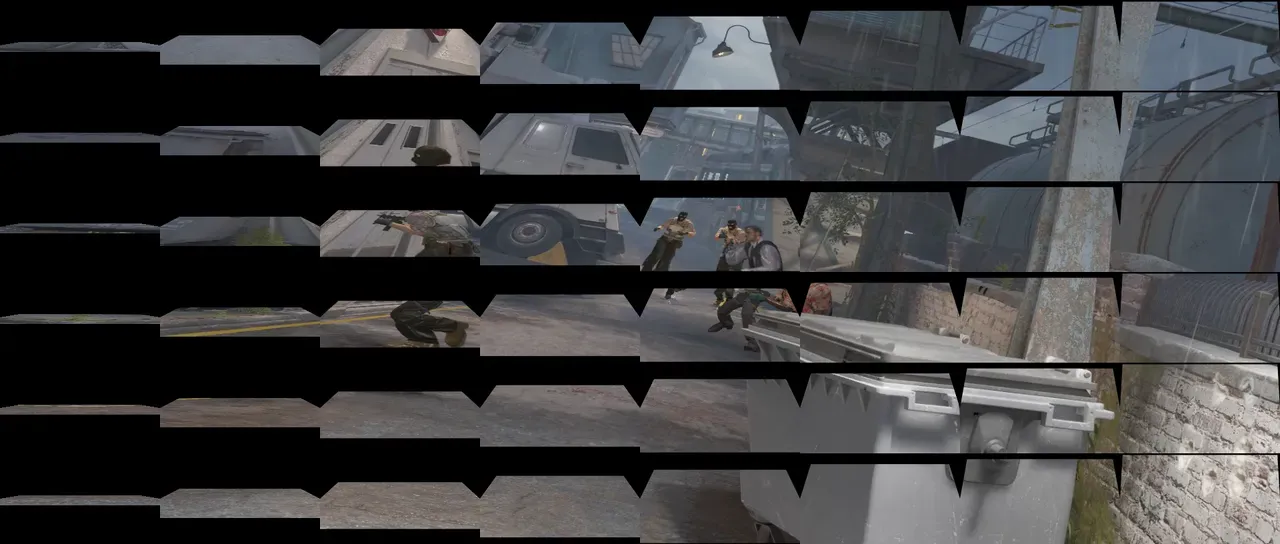

Section titled “What it does”Transitions the layer as a grid of cards, each one turning and disappearing. This works as a wave across the frame.
Parameters
Section titled “Parameters”| Parameter | Control | Range | Default | Unit |
|---|---|---|---|---|
| Completion | Slider | 0 to 100 | 50 | Per cent |
| Transition width | Slider | 1 to 3840; higher | 960 | Pixels at composition size |
| Rows | Slider, whole numbers | 1 to 64; up to 256 | 6 | - |
| Columns | Slider, whole numbers | 1 to 64; up to 256 | 8 | - |
| Flip axis | Dropdown | Horizontal axis · Vertical axis · Random | Horizontal axis | - |
| Flip direction | Dropdown | Forwards · Backwards · Random | Forwards | - |
| Flip order | Dropdown | Left to right · Right to left · Top to bottom · Bottom to top | Left to right | - |
| Randomness | Slider | 0 to 100 | 0 | Per cent |
| Seed | Seed | Any whole number | A fresh random seed per instance | - |
| Mix | Slider | 0 to 100 | 100 | Per cent |
| Blend | Dropdown | Normal · Darken · Multiply · Colour burn · Linear burn · Darker colour · Add · Lighten · Screen · Colour dodge · Lighter colour · Overlay · Soft light · Hard light · Linear light · Vivid light · Pin light · Hard mix · Difference · Exclusion · Subtract · Divide · Hue · Saturation · Colour · Luminosity | Normal | - |
| Matte | Layer | Any layer in the composition | None | - |
| Invert | Checkbox | On or off | Off | - |
| Channel | Dropdown | Luminance · Alpha · Red · Green · Blue | Luminance | - |
In the Effect Controls panel:
- Matte scales Completion per pixel: the cards have turned further where the matte is bright, and it is asked per pixel, so a card can be half flipped and half standing. Invert reads that matte inverted.
What each control does
Section titled “What each control does”- Completion is how far from beginning to end the wipe is.
- Transition width is how wide the flipping wave is, in pixels.
- Rows and Columns set how many cards there are.
- Flip axis chooses which line each card turns about.
- Flip direction chooses which way each card turns.
- Flip order sets which side the wave starts from.
- Randomness sets how far each card’s turn is shuffled away from Flip order.
- Seed randomises the shuffle.
- Mix: how much of the result replaces the original.
- Matte and Invert drive the strength of the effect from another layer’s brightness; see Effects.
