Ripple
Last updated
Ripple is a Distortion effect.
What it does

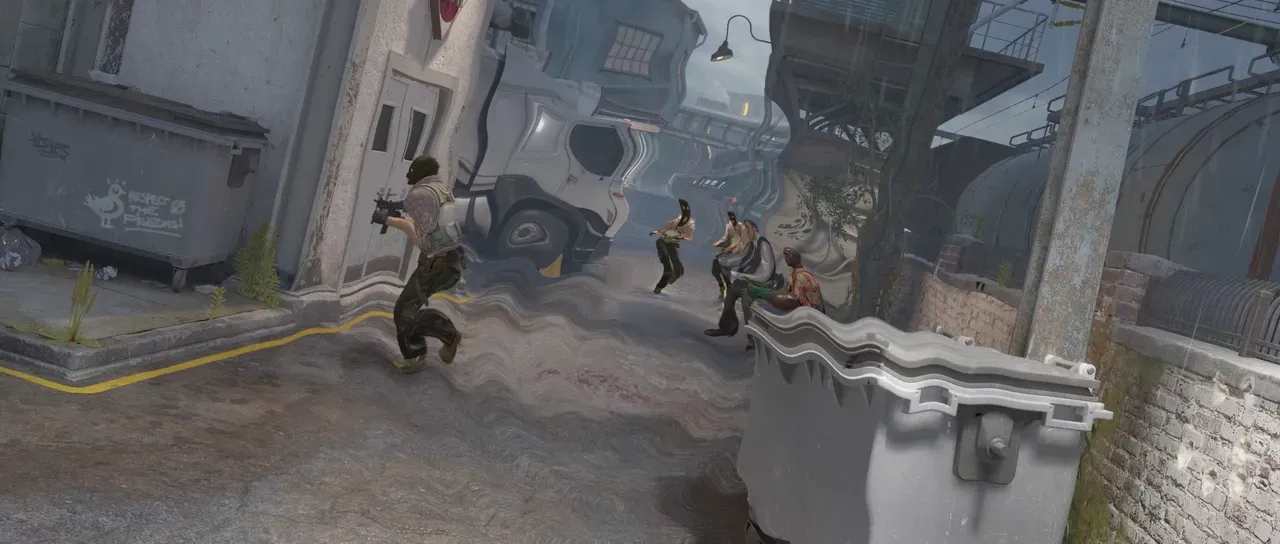

Section titled “What it does”Rings of distortion spread out from a point, fading away with distance. Animate Evolution and the rings travel.
Parameters
Section titled “Parameters”| Parameter | Control | Range | Default | Unit |
|---|---|---|---|---|
| Radius | Slider | 0 to 2000; higher | 650 | Pixels at composition size |
| Centre X | Slider | 0 to 3840; any value by typing | 960 | Pixels at composition size |
| Centre Y | Slider | 0 to 2160; any value by typing | 540 | Pixels at composition size |
| Type | Dropdown | Symmetric · Asymmetric | Asymmetric | - |
| Wave height | Slider | 0 to 200; higher | 10 | Pixels at composition size |
| Wave width | Slider | 1 to 400; higher | 90 | Pixels at composition size |
| Evolution | Dial | Any angle; snaps every 45° while a modifier is held | 0° | Degrees |
| Mix | Slider | 0 to 100 | 100 | Per cent |
| Blend | Dropdown | Normal · Darken · Multiply · Colour burn · Linear burn · Darker colour · Add · Lighten · Screen · Colour dodge · Lighter colour · Overlay · Soft light · Hard light · Linear light · Vivid light · Pin light · Hard mix · Difference · Exclusion · Subtract · Divide · Hue · Saturation · Colour · Luminosity | Normal | - |
| Matte | Layer | Any layer in the composition | None | - |
| Invert | Checkbox | On or off | Off | - |
| Channel | Dropdown | Luminance · Alpha · Red · Green · Blue | Luminance | - |
In the Effect Controls panel:
- Matte scales Wave height per pixel: white ripples the full height, grey less, black not at all. Invert reads that matte inverted.
What each control does
Section titled “What each control does”- Radius: how far the rings reach.
- Centre X and Centre Y: the point ripples emit from.
- Type: Symmetric slides each pixel in and out along the radius. Asymmetric adds a sideways component a quarter wave out of step.
- Wave height: the largest displacement of a pixel.
- Wave width: the distance from one crest to the next.
- Evolution: adjusts the phase of the ripple.
- Mix: how much of the result replaces the original.
- Matte and Invert drive the strength of the effect from another layer’s brightness; see Effects.
